Roman Shades

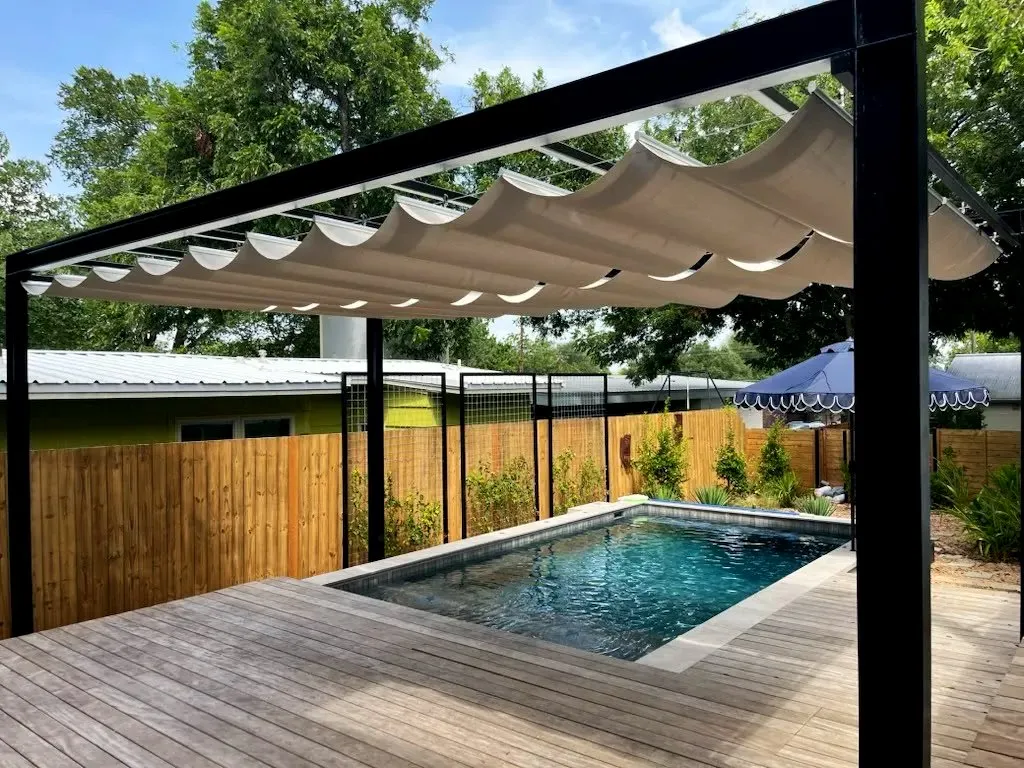

Soft shade for a pergola or covered patio. Fabric panels on overhead cables - slide them open for sky, closed for shade, anywhere in between for dappled light. Built by hand in Austin.

  1. Designed, fabricated, and installed by CanopyWorx. Built for Central Texas sun and the architecture we see here.
  2. Scalable from a 10-foot pergola to a terrace that runs the length of the house - one system, sized to the project.
  3. Marine-grade stainless hardware. The same fabrics we use on boat covers. Built to last.
Overview

A softer take on pergola shade.

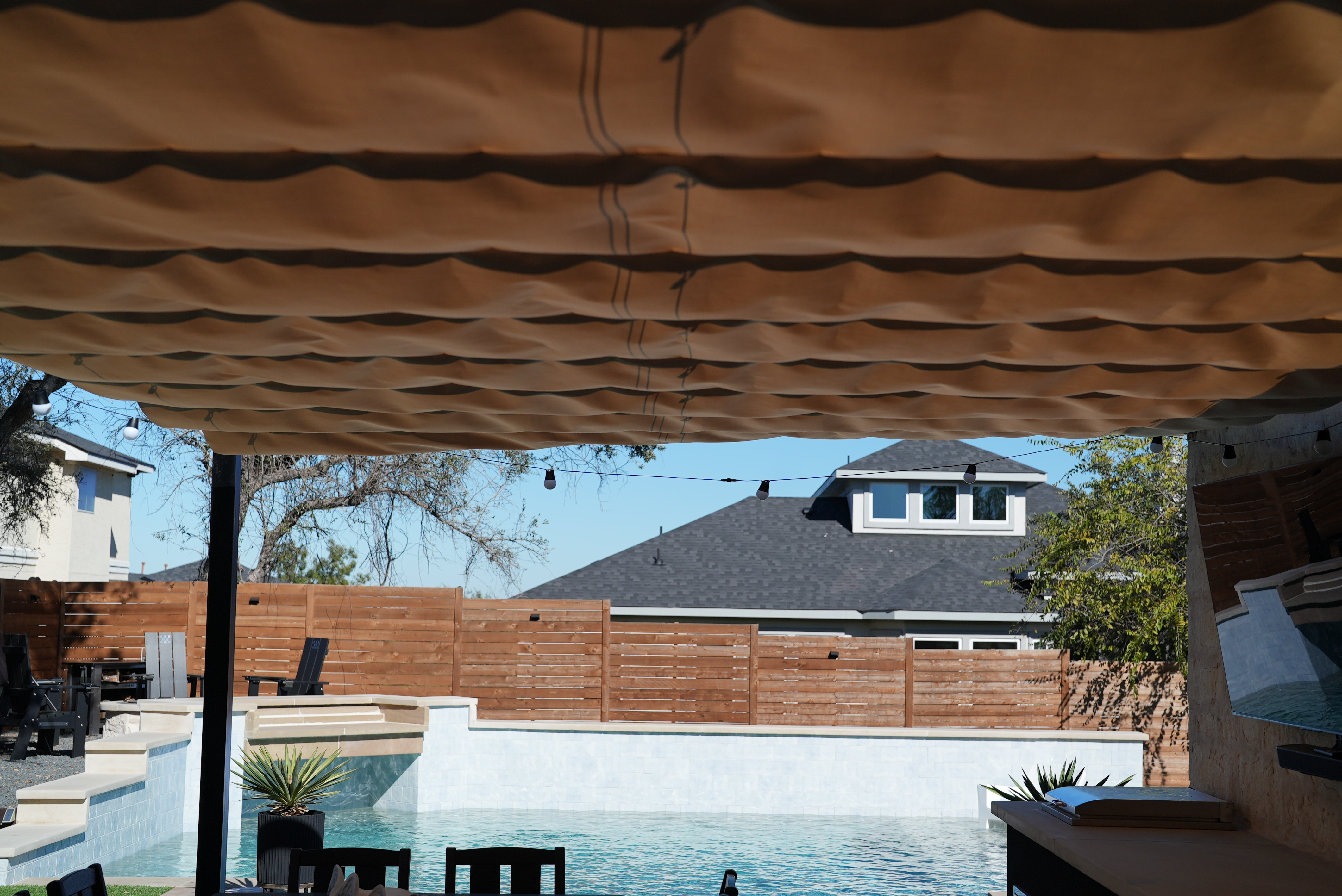

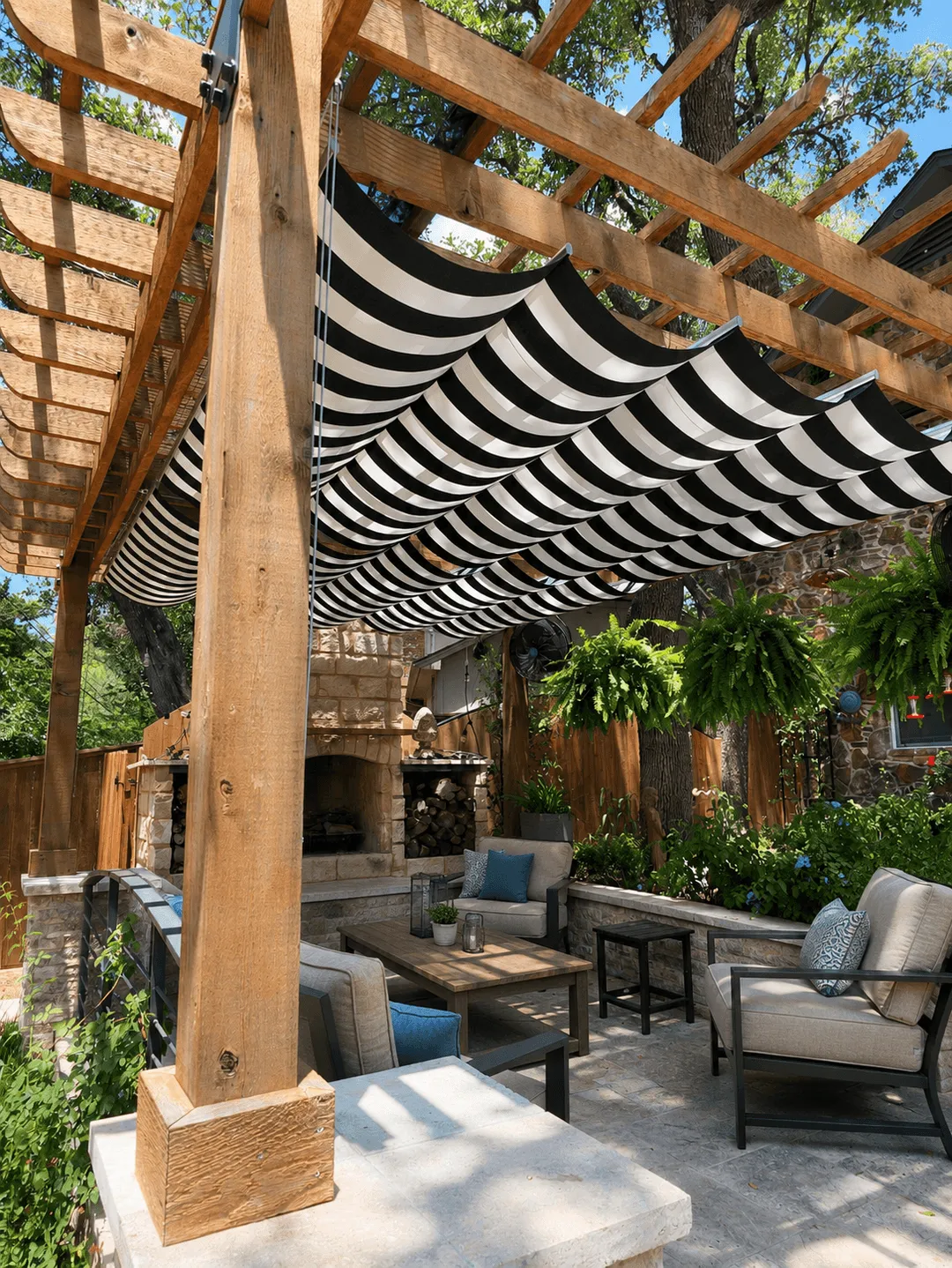

Fabric panels loop onto tensioned cables overhead and slide along them by hand. Gather them to one end for open sky, pull them across for full shade, or stop anywhere in between for dappled light. The panels billow into a soft Roman wave - the detail that gives the system its name and its look.

We size each system to the exact opening, half-inch increments, no upper limit on overall coverage. Sections link end-to-end for wider spans. Panels lift off the cables in minutes when a storm is coming or when you want to put them away for winter. We fabricate every panel in our Austin shop and install the whole system ourselves.

Built for the way the space actually gets used.

Open, closed, or anywhere in between

Slide panels to either end for full sky. Pull them across for full shade. Stop anywhere in between for the light you want at that moment. The outdoor space adapts to the day instead of being locked into one mode.

Sized exactly to your space

Each section is built to measure - width in half-inch increments, no constraint on length. A 10-foot pergola and a 50-foot terrace use the same system, scaled to fit. We measure on site and fabricate to that measurement.

Take panels off for the season

Individual panels lift off the cables in a few minutes - no tools, no crew. Store them flat for winter, re-hang them in spring. Damage to one panel never takes down the whole system; we replace that panel and the rest stays in service.

Real fabric choices

Solution-dyed acrylic for full UV block and rain-shedding. Open-weave mesh for airflow and filtered light. Technical vinyl for full waterproofing. Hundreds of colors and patterns across the three - we help you pick based on exposure, view, and how the space is used.

Fits the structure you already have

The cable system attaches to existing pergolas, masonry walls, building facades, or structural steel. No demolition, no custom framing in most cases. If your structure can’t carry the tension, we build a freestanding aluminum frame that can.

Simple to live with

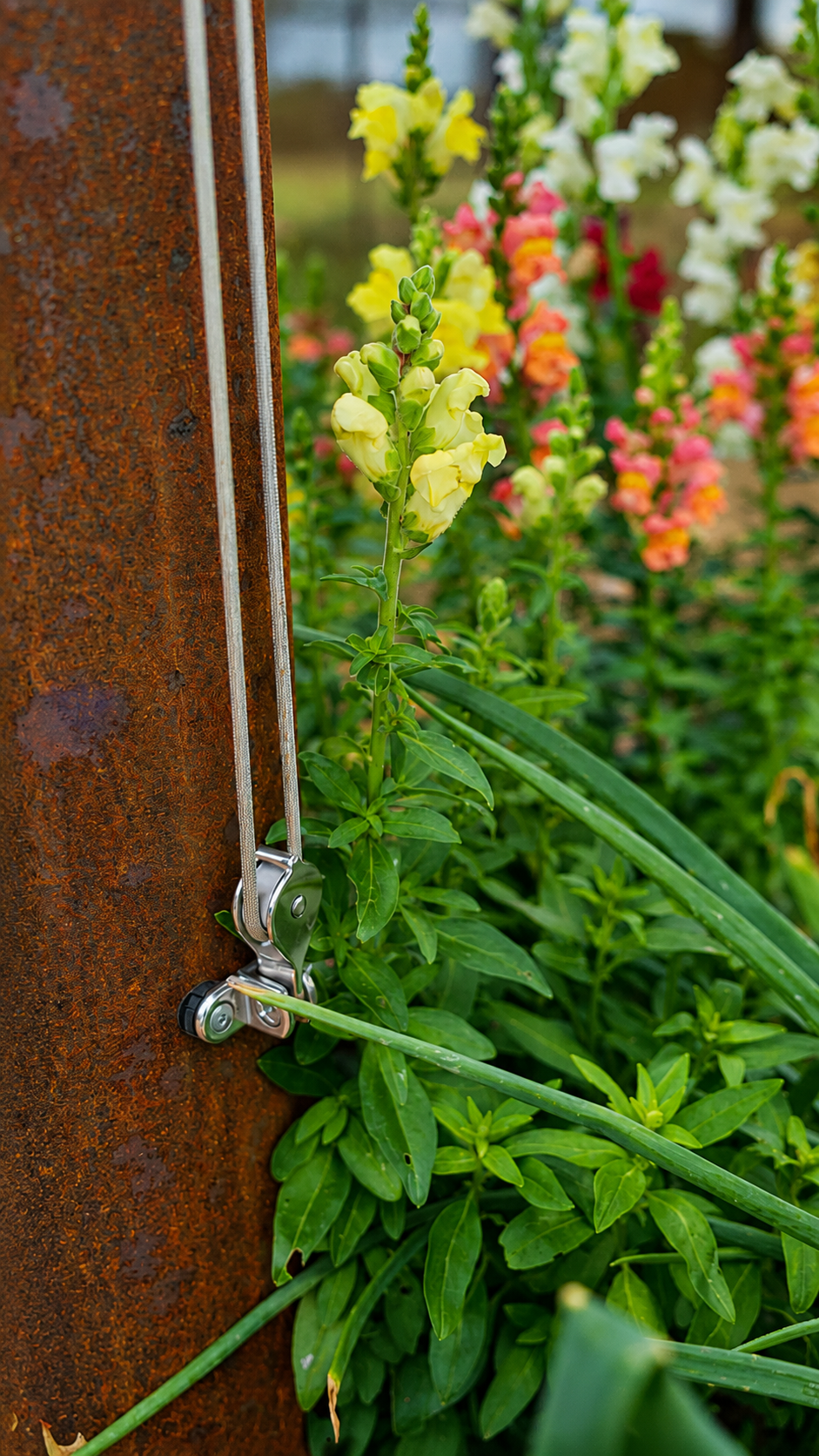

Hand-operated by a pull cord at one end. No motors, no remotes, no apps, no batteries, nothing to fail. The system is designed to last decades - we want the moving parts to be as simple as the engineering allows.

Verified specs.

All specs verified against manufacturer documentation and our installation records.

  • System: Cable-guided sliding fabric panels · hand-operated.
  • Operation: Manual pull cord. No motor, no electronics.
  • Section span: Up to 14 ft wide, half-inch increments · unlimited projection length
  • Total Coverage: No upper limit - sections link end-to-end or side-by-side
  • Fabric options: Solution-dyed acrylic (100% UV block, rain-capable) · open-weave mesh (65–92.5% UV, airflow) · technical vinyl (fully waterproof)
  • Hardware: Marine-grade 316 stainless steel and anodized aluminum
  • Installation: Works with existing pergolas, walls, or structural steel · freestanding aluminum frames available if needed
  • Warranty: 5-year standard · 15-year tier available on hardware
  • Lead time: 6-8 weeks

Best applications.

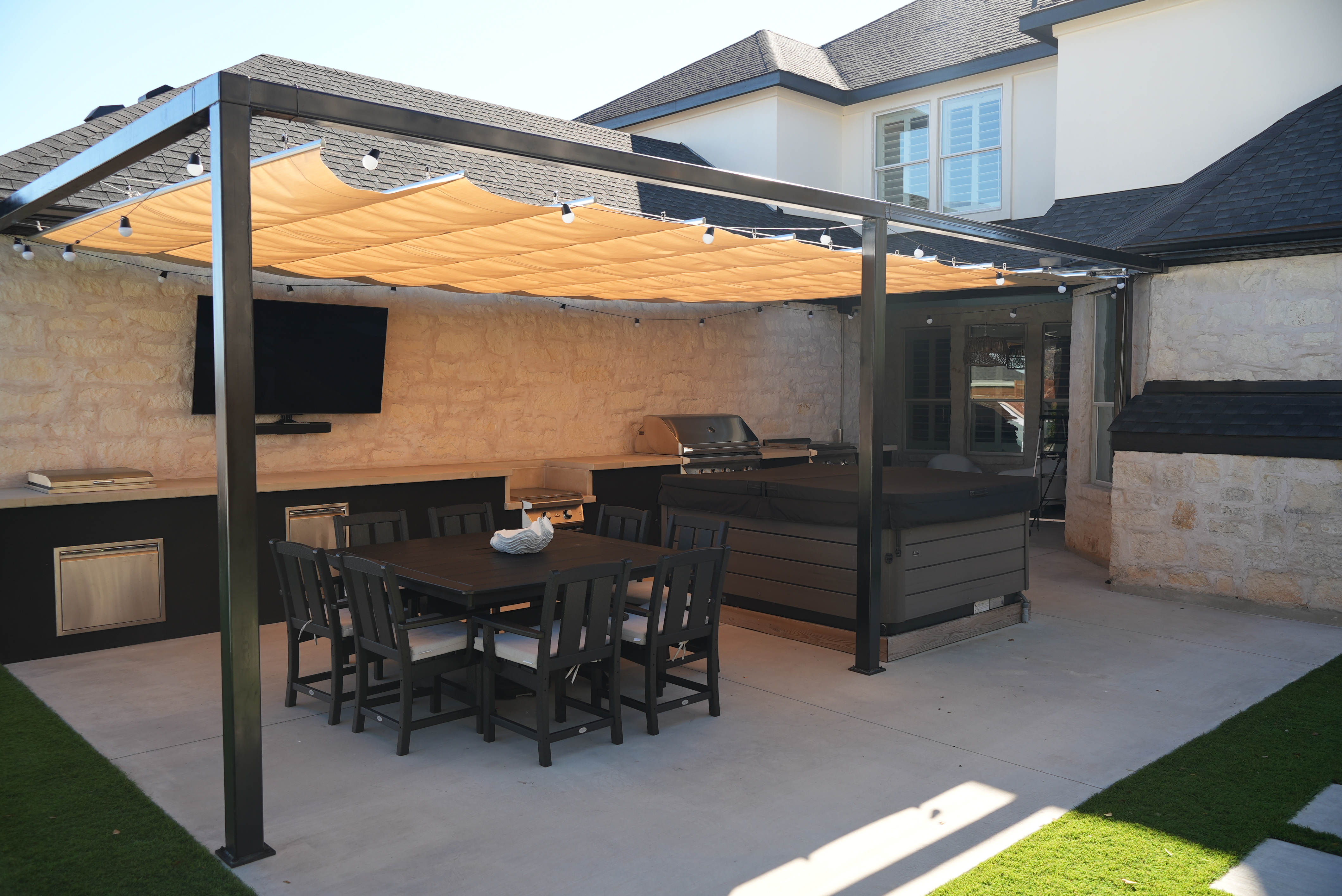

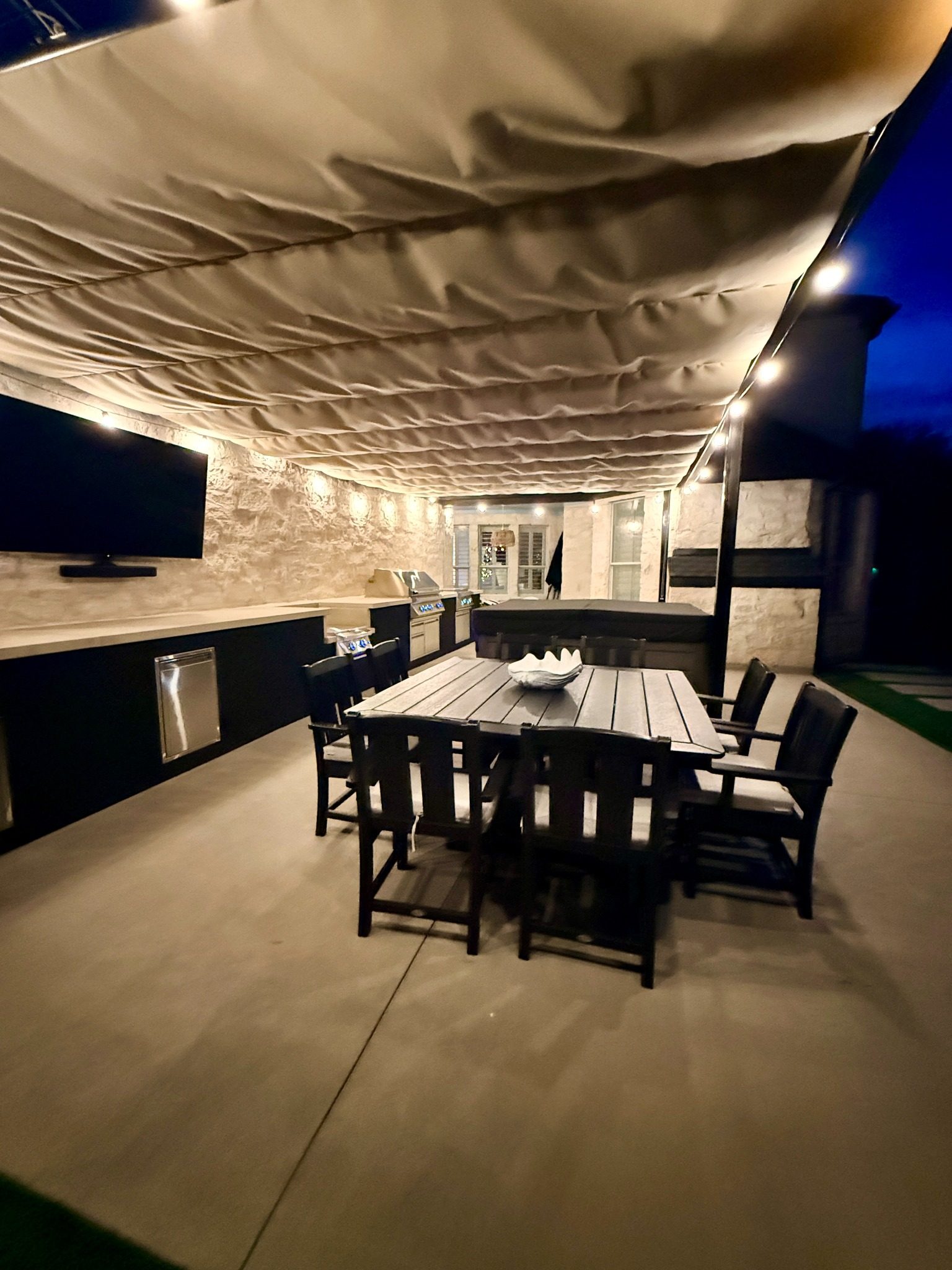

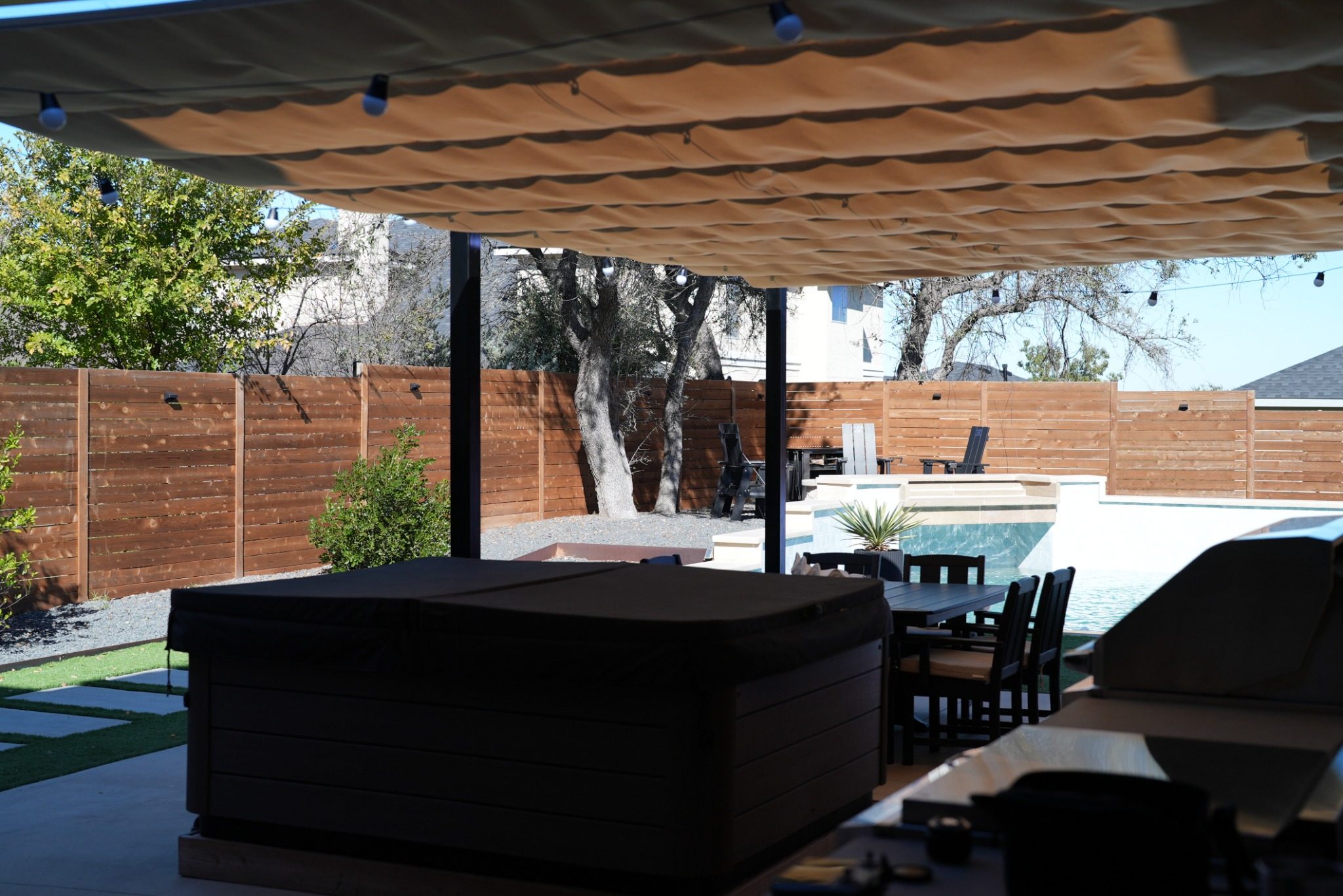

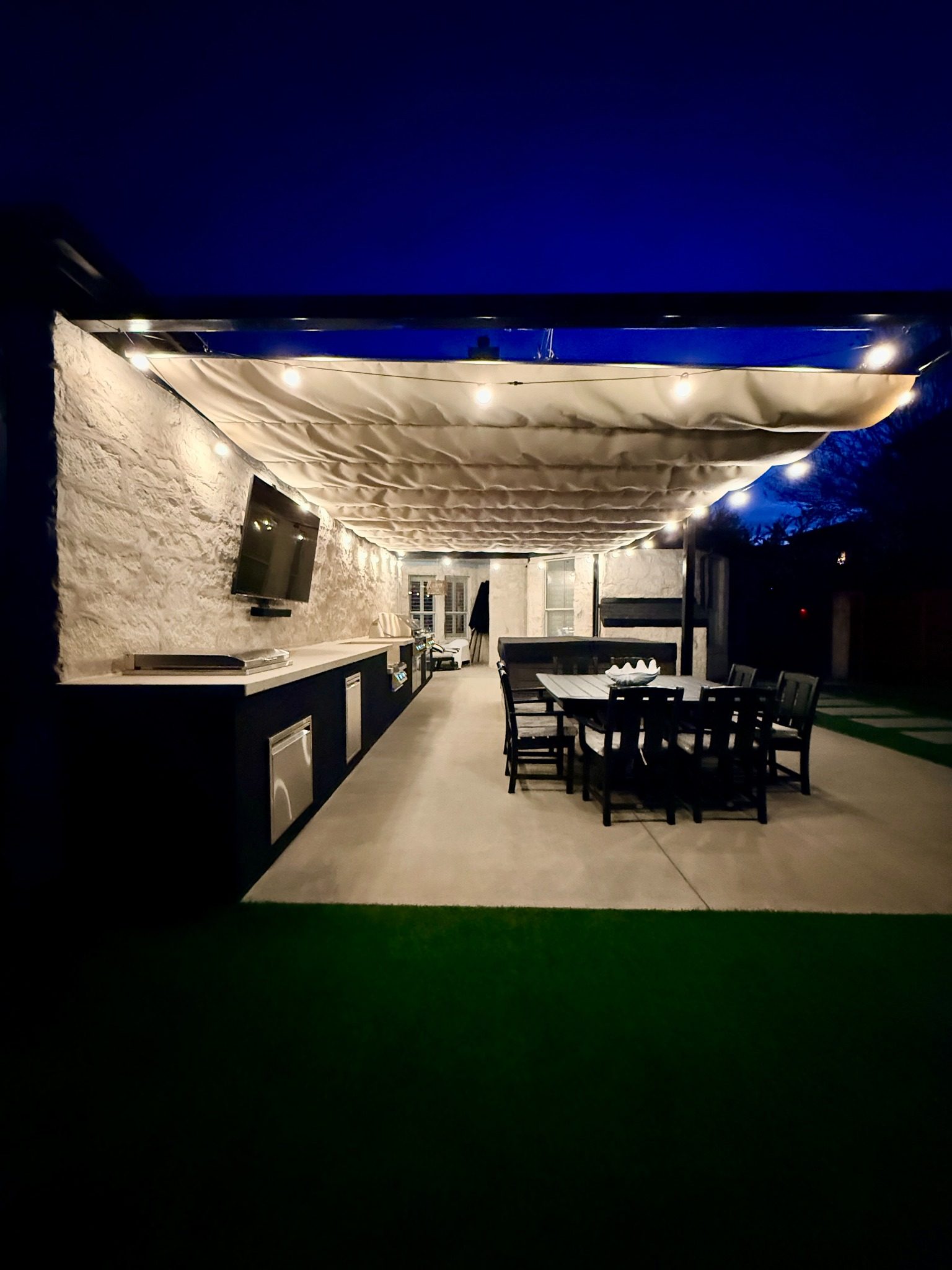

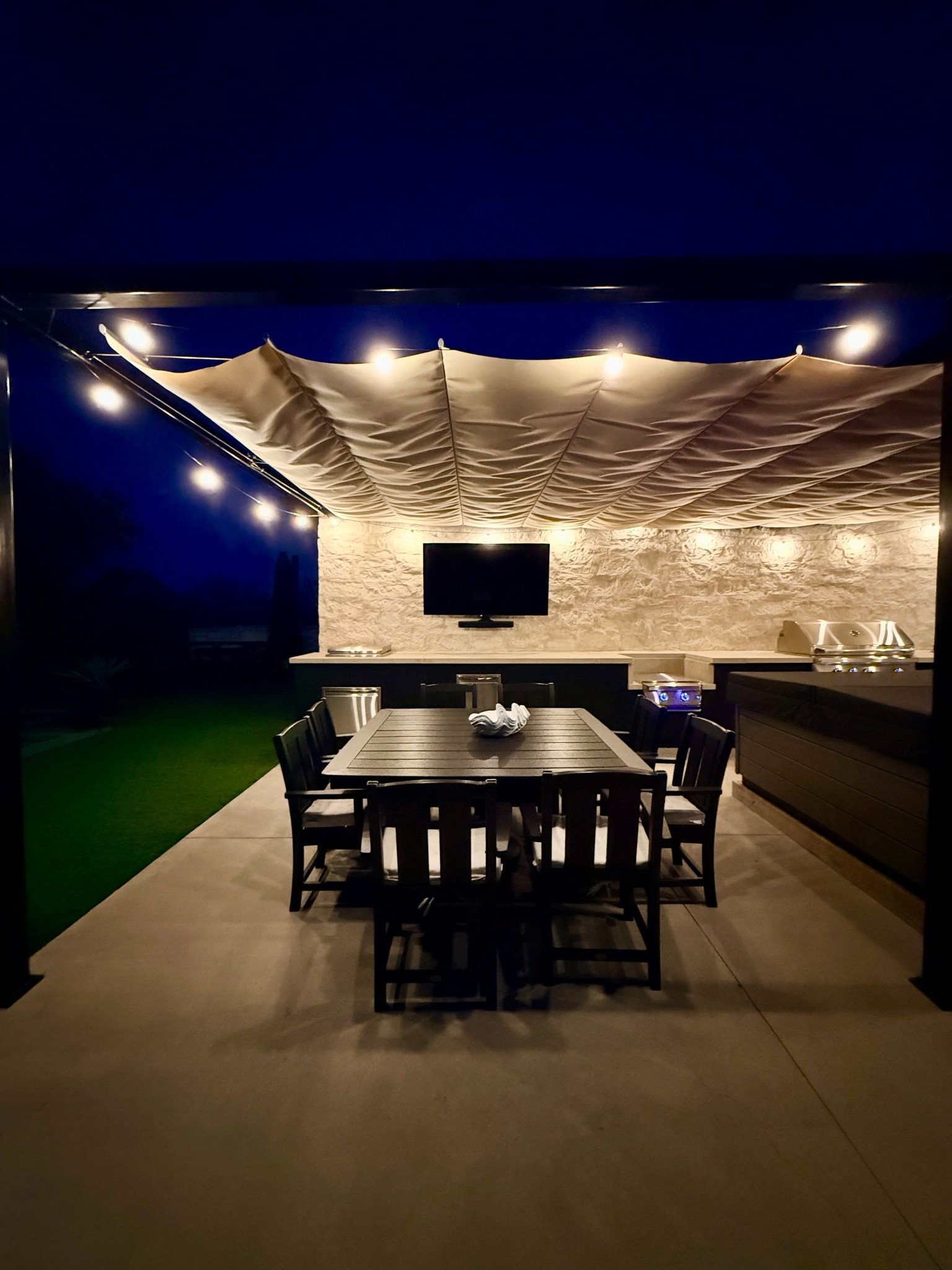

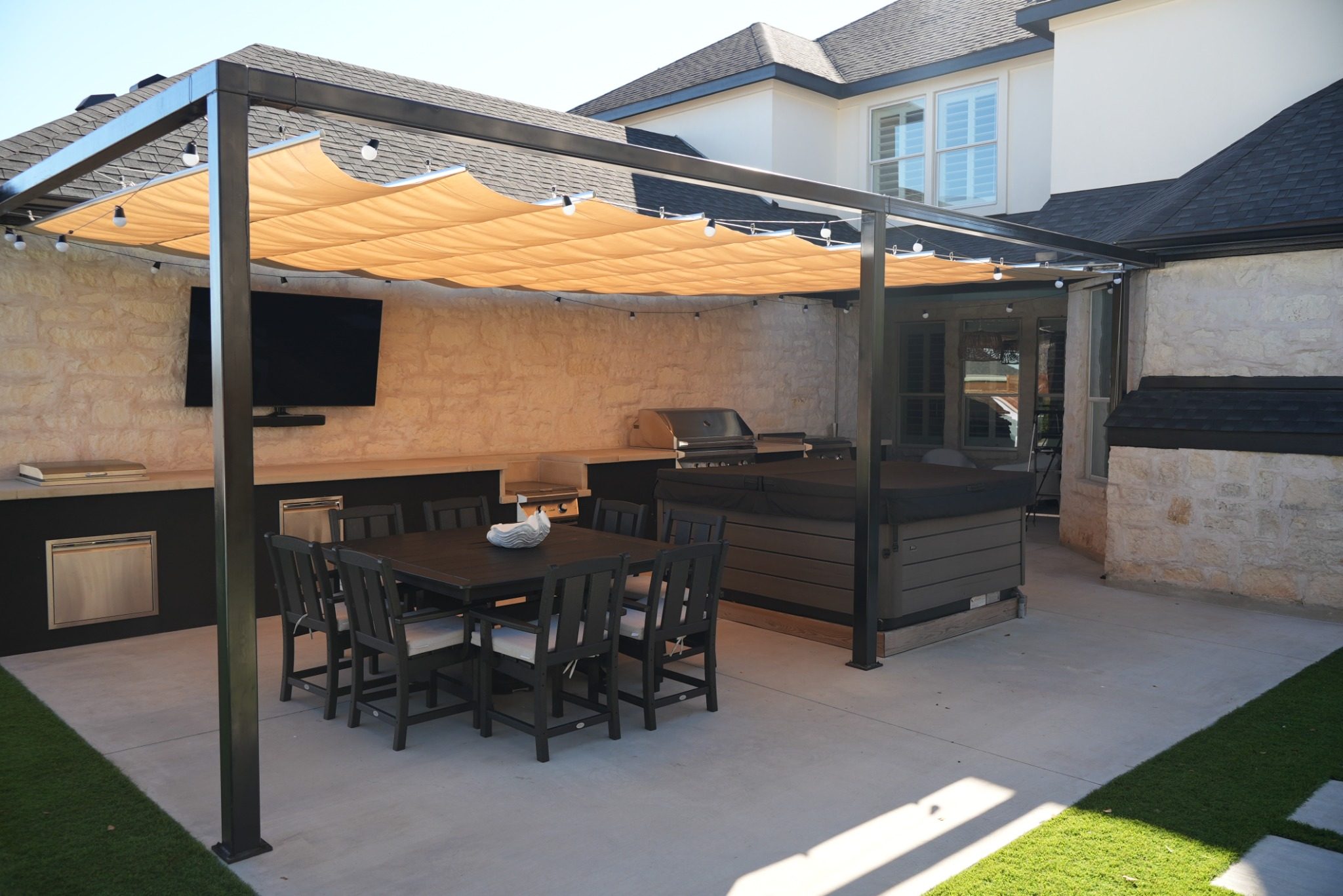

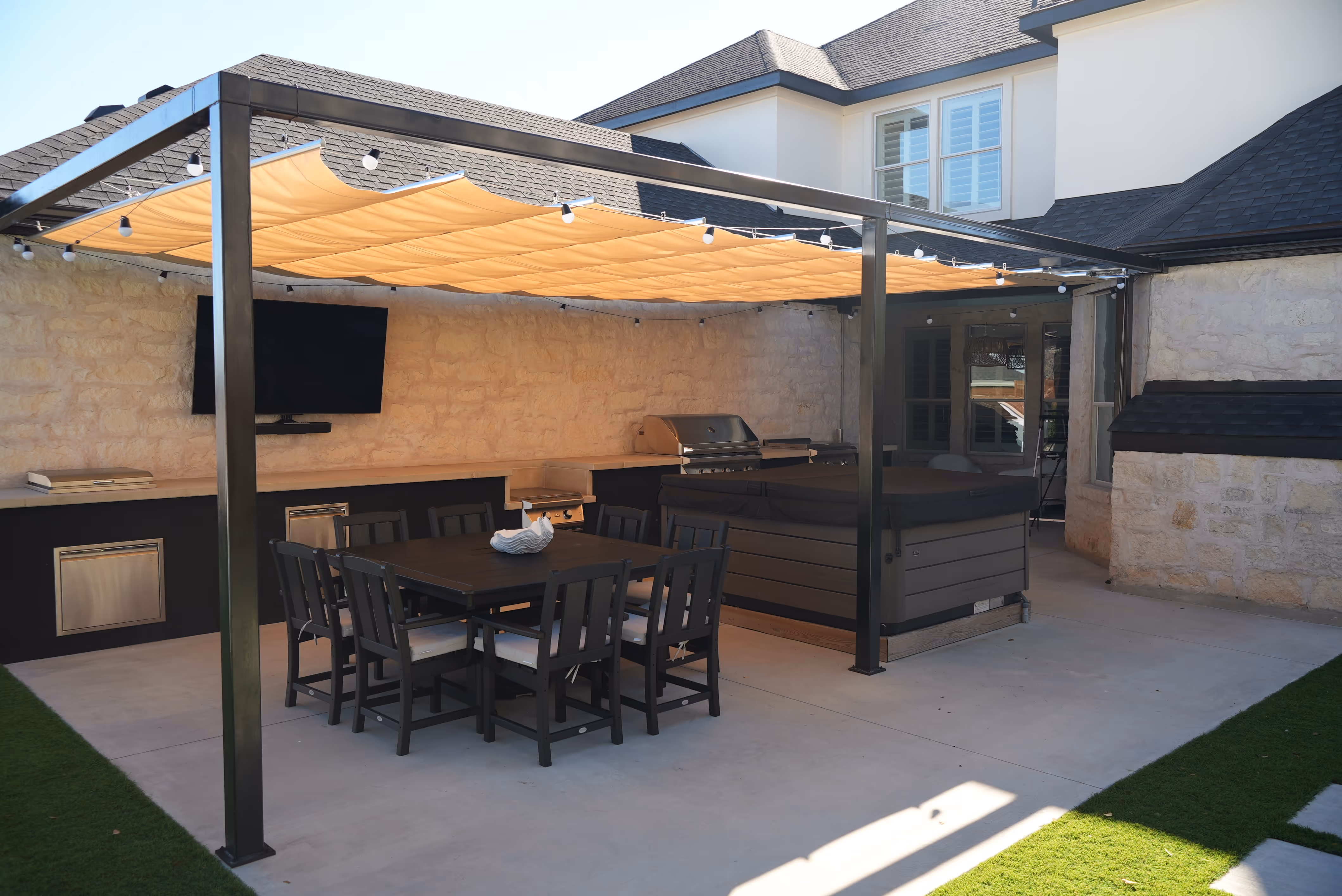

Residential pergolas & patios

Residential pergolas & patios

The most common use - soft shade over an outdoor dining area, a back patio, or a pool pergola. Looks purpose-built, not retrofitted.

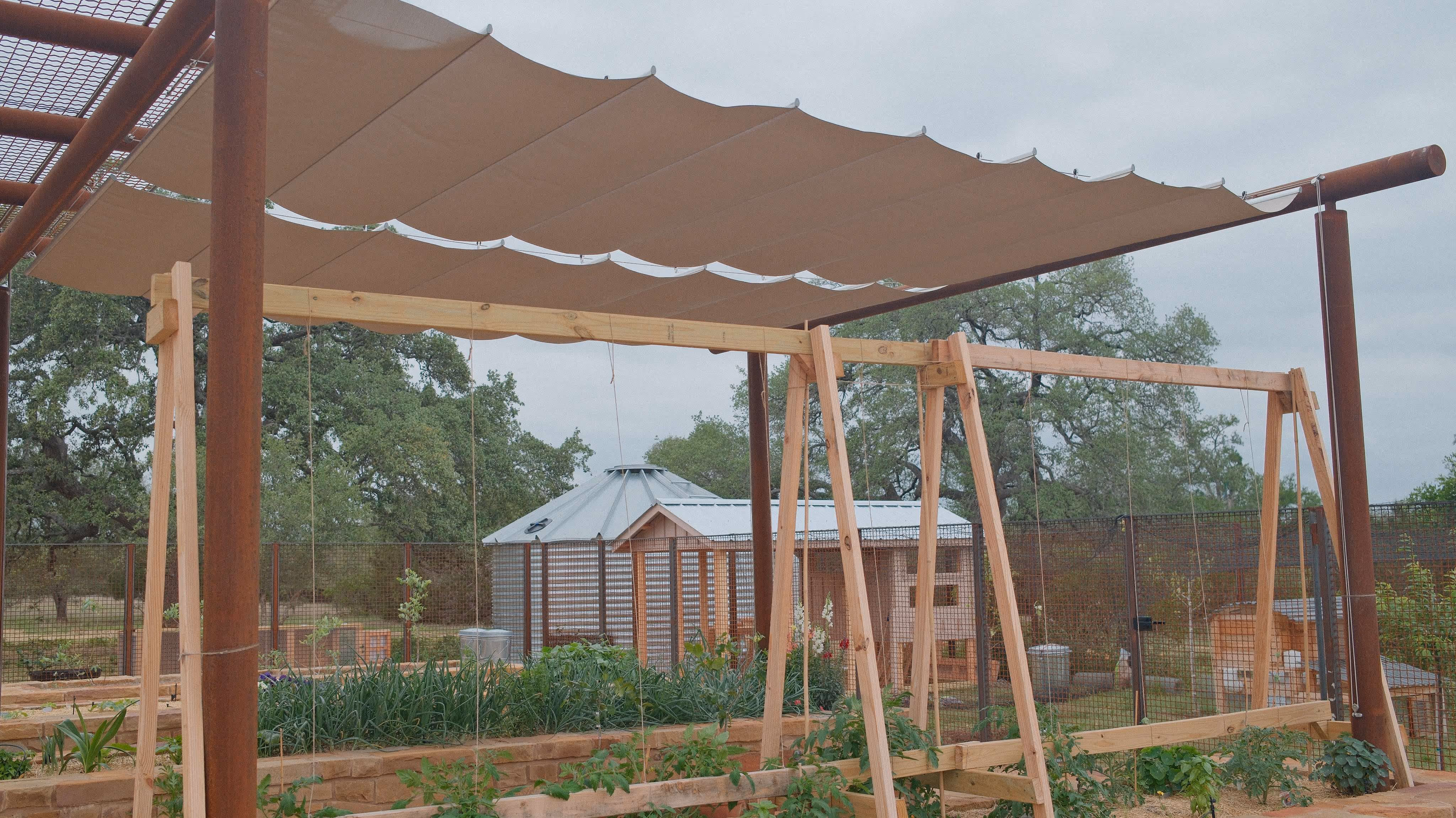

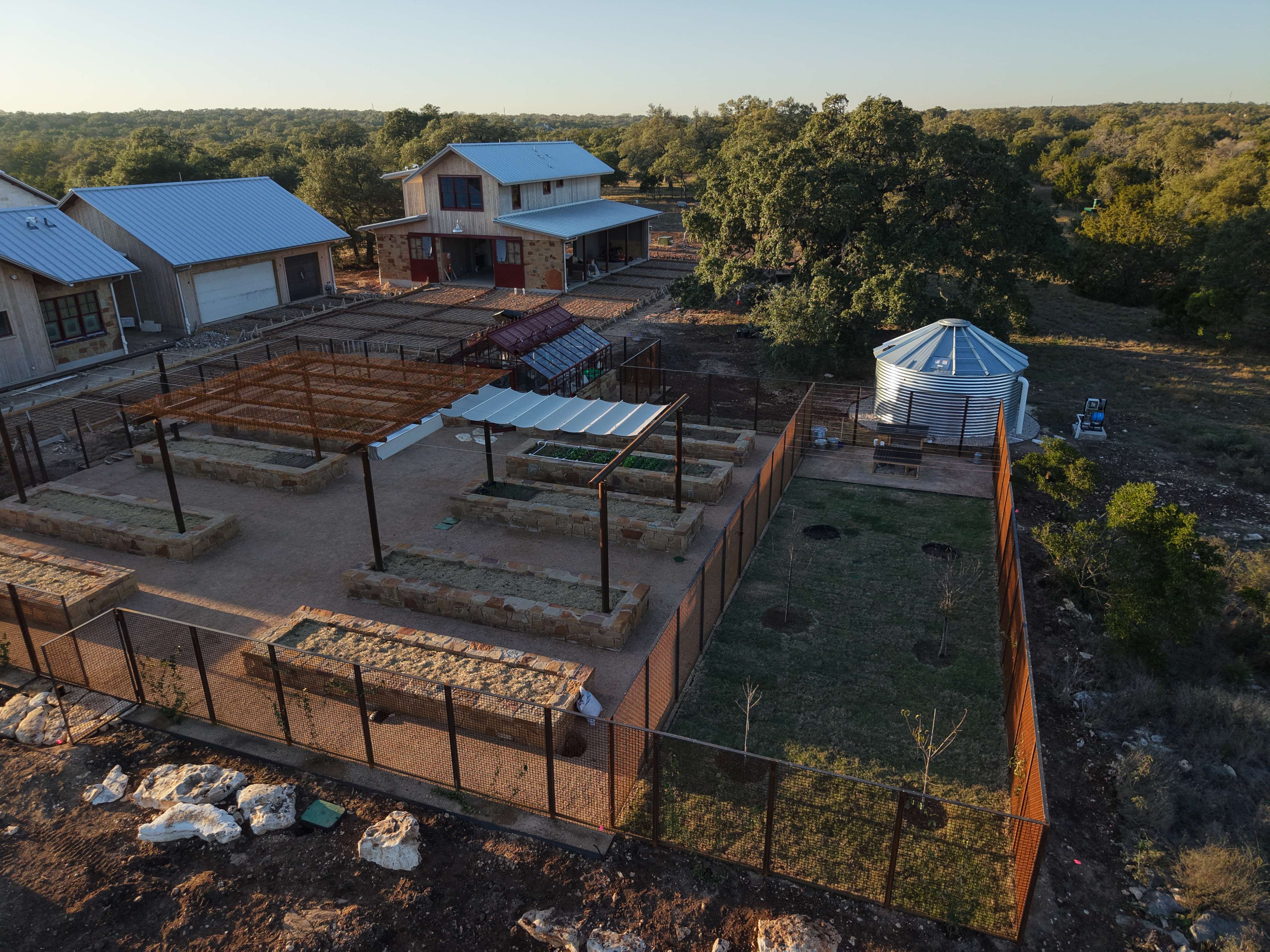

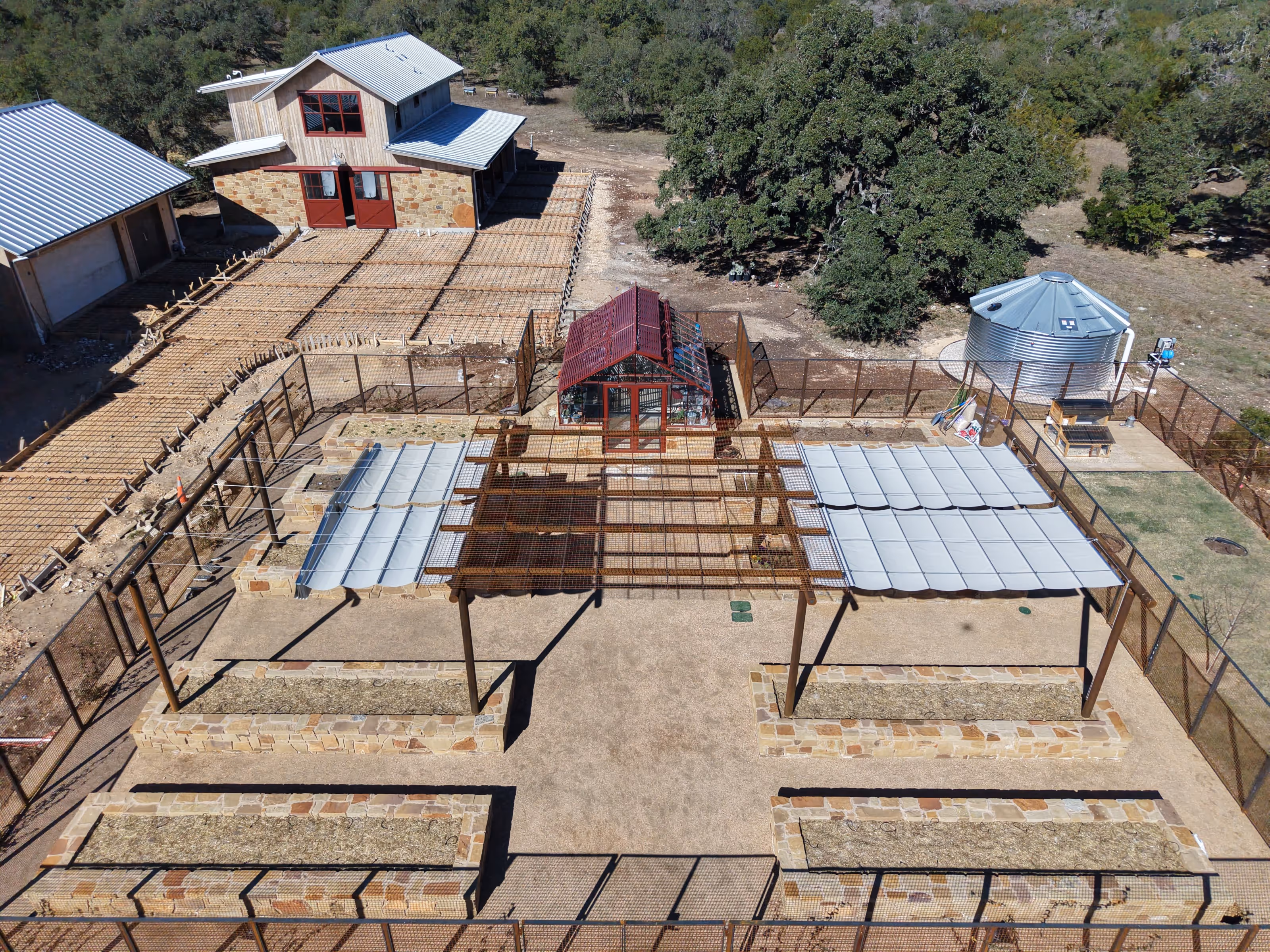

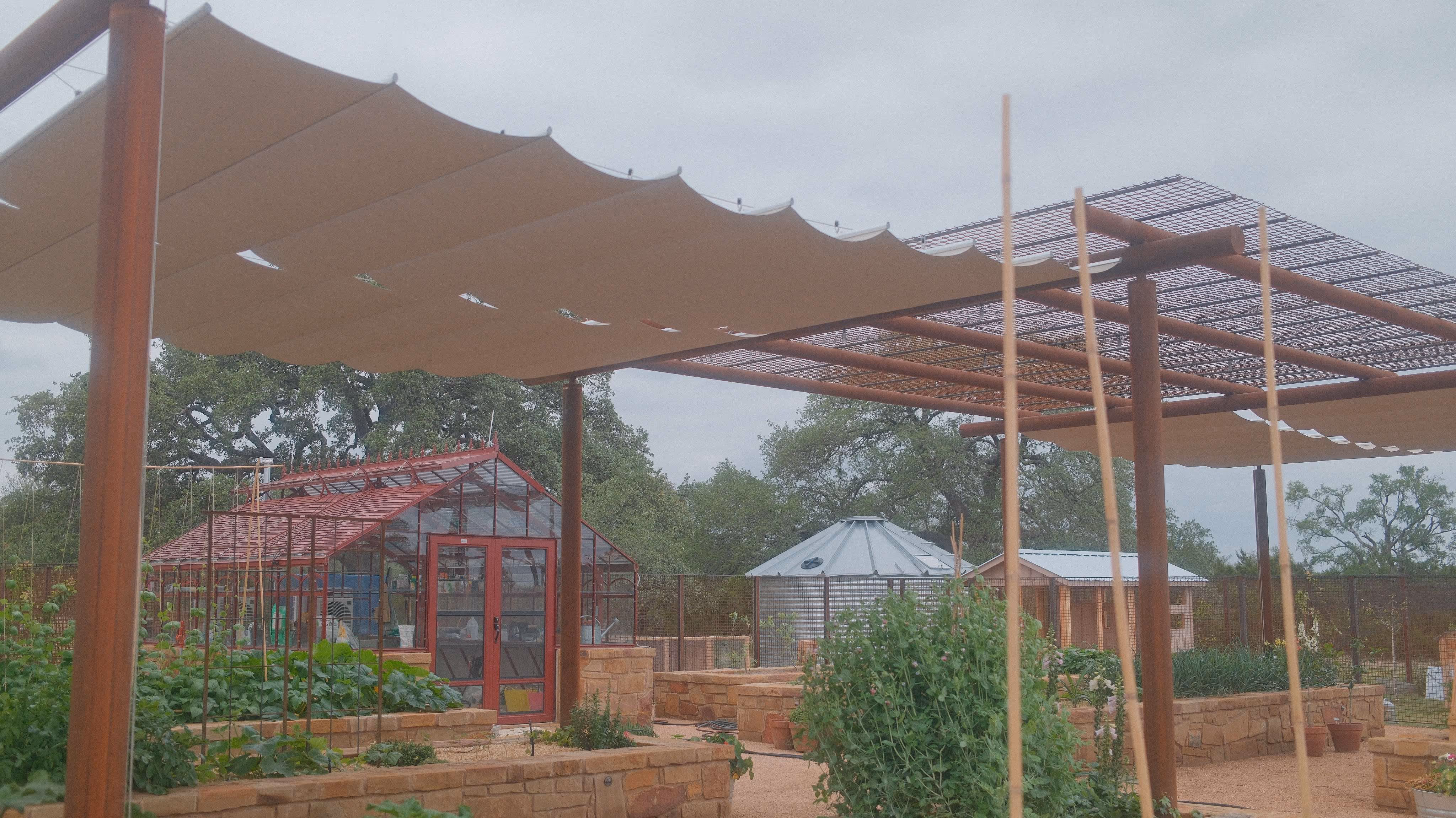

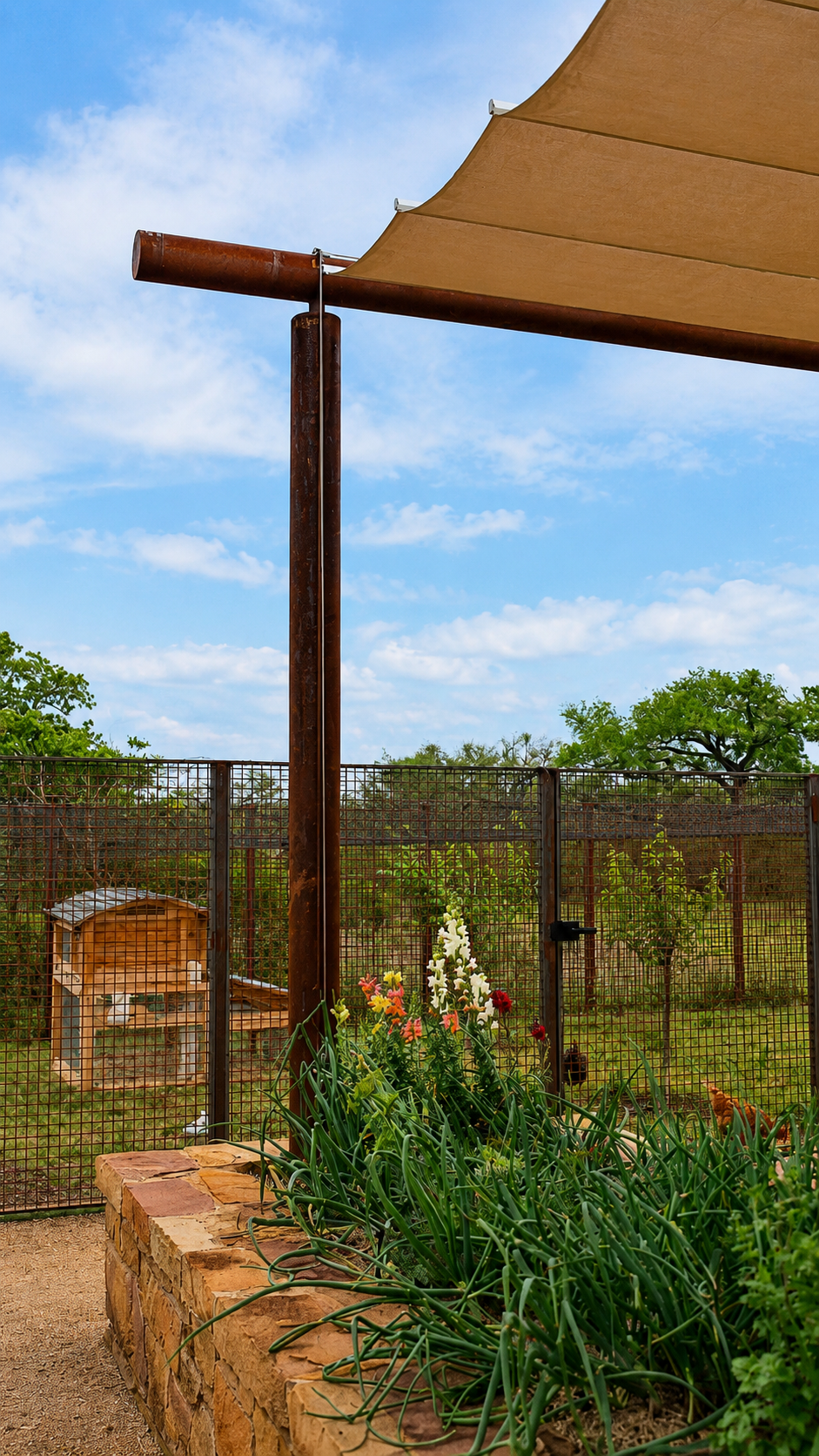

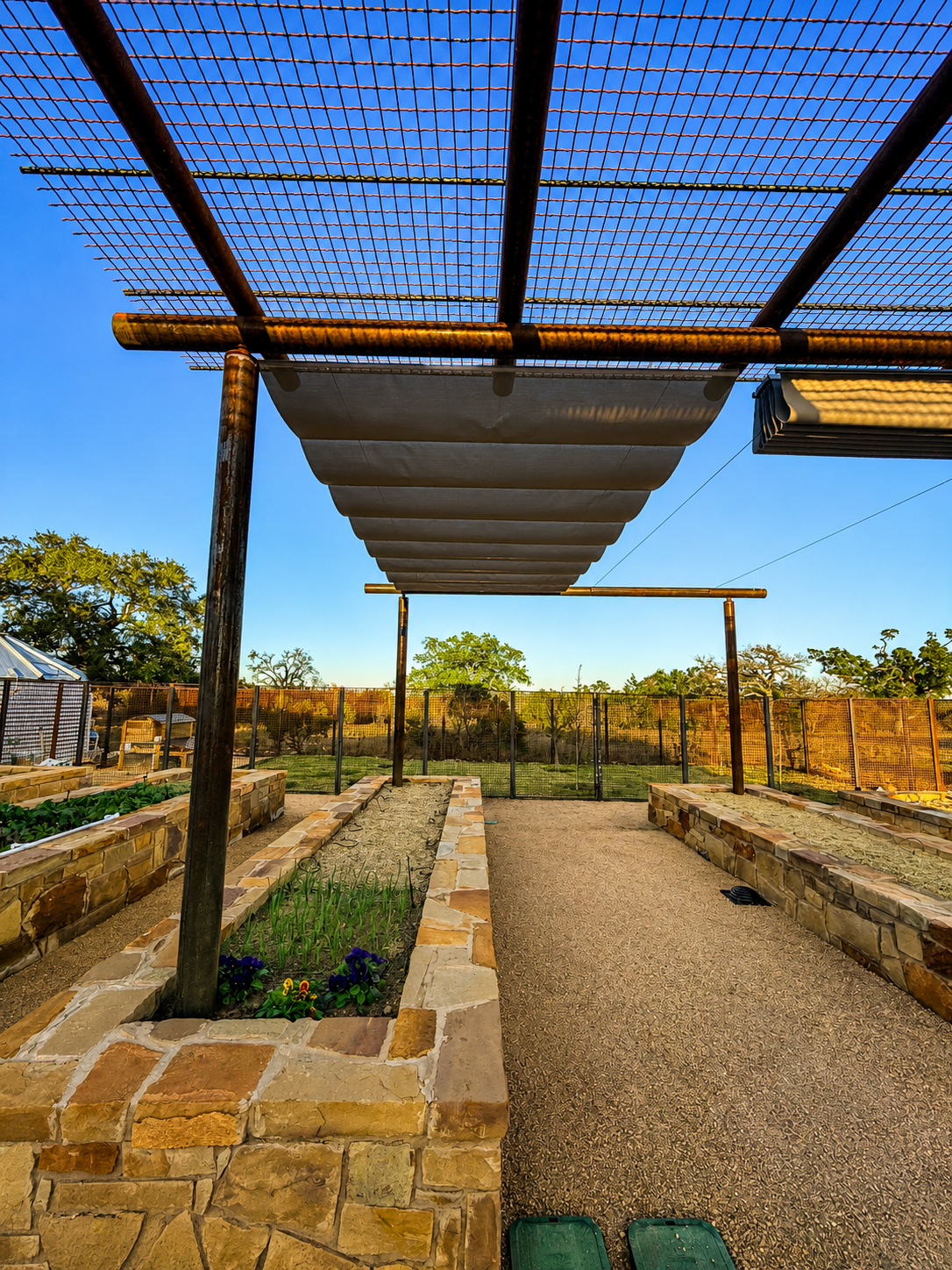

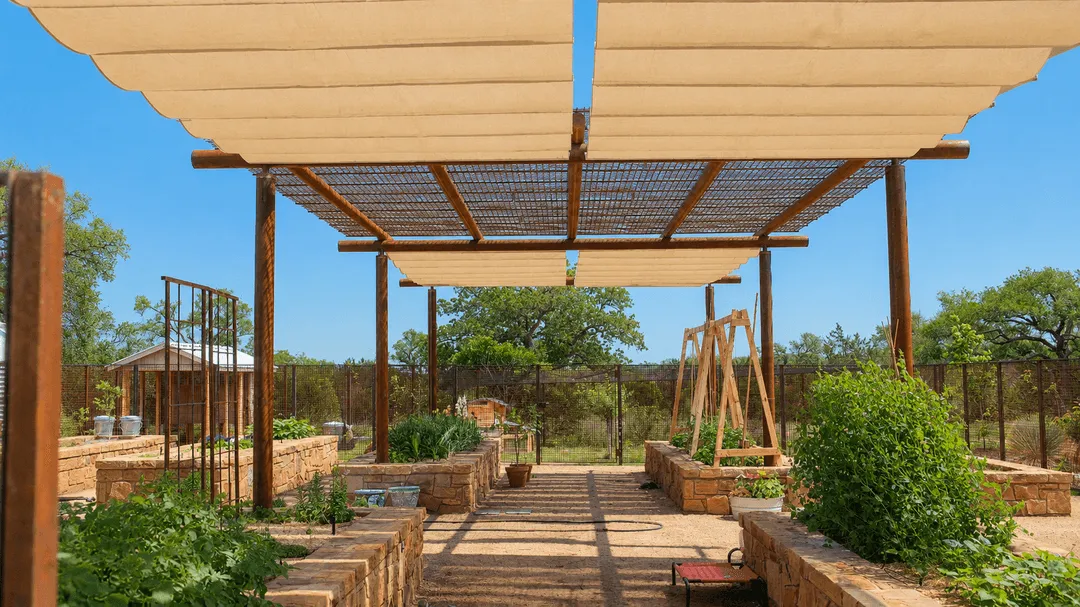

Ranch & garden spaces

Ranch & garden spaces

Shade over open-air kitchens, garden seating, and ranch pavilions where the structure is there but the shade isn’t. Roman Shades add the shade without changing the architecture.

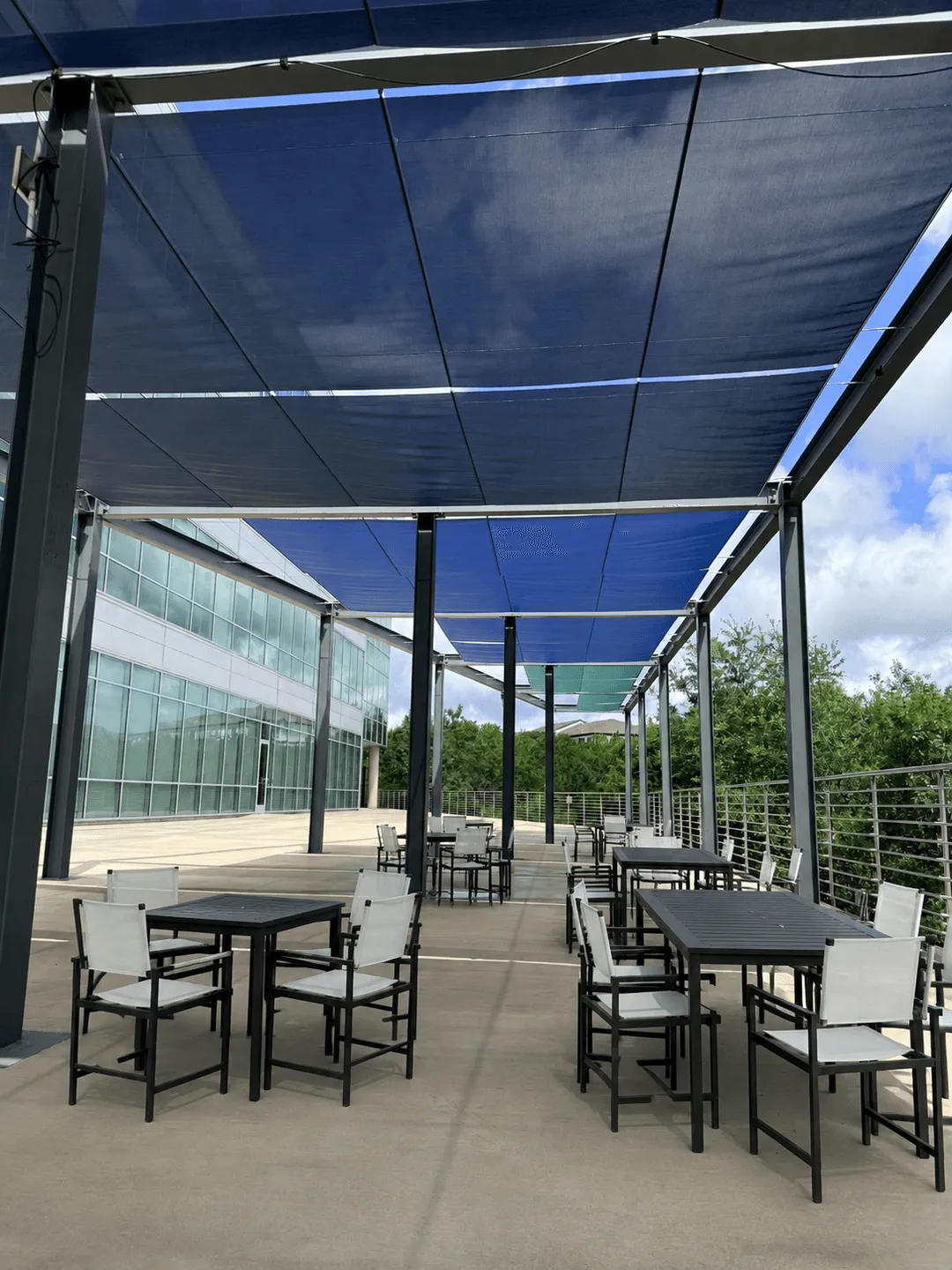

Hospitality terraces

Hospitality terraces

Restaurant patios, hotel pool decks, and outdoor bars where the shade needs to feel designed rather than dropped in. Fabric language instead of metal louvers.

From loft to install.

01

Site visit

02

Pattern

03

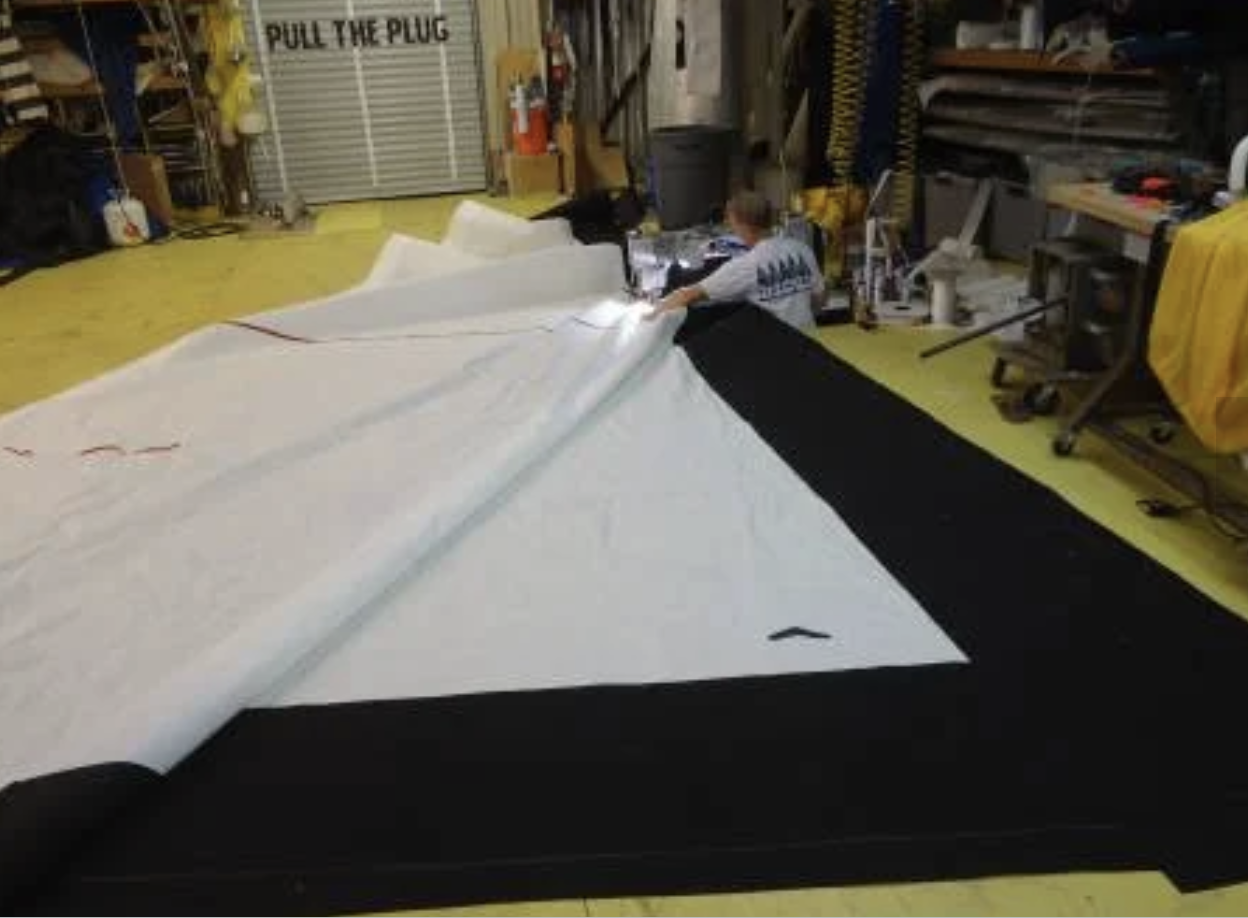

Cut & sew

04

Deliver

05

Install

Straight answers.

01

How is this different from a shade sail I can buy online or at a home improvement store?

Retail shade sails are manufactured in fixed sizes, sold with consumer-grade hardware, and designed for DIY installation. They use unrated fabric with no verified UV or fire certifications, zinc or galvanized hardware that corrodes within a few seasons, and they rely on the buyer to achieve correct tension - which rarely happens without experience. The result is typically the floppy, off-profile canopy the category is known for. A CanopyWorx sail is custom-fabricated to your site's exact dimensions, built from commercial-grade HDPE with documented warranties and certifications, hung on a fully stainless steel hardware system, and professionally installed and tensioned to specification. The difference is visible in the first season and compounds over the life of the installation.
02

Are shade sails waterproof?

No - and that is intentional. Commercial HDPE shade cloth is an open-weave, breathable fabric. Rain passes through rather than pooling, which eliminates the structural stress that builds up on solid canopies after heavy precipitation. The open weave also allows air to circulate freely under the sail, making the shaded space comfortable even on still, warm days. If your project requires rain coverage in addition to sun, we specify other product categories for that. For pure solar shading in an open environment, breathability is a meaningful performance advantage - not a limitation.
02

Can it be added to my existing pergola?

In most cases, yes. The cable system is compatible with existing wood, metal, or masonry pergolas, covered patios, and structural walls. We assess the structure during the site visit to confirm it can carry the cable tension. If it can’t, we build a freestanding aluminum frame that sits inside or alongside the existing structure.
03

Can a shade sail be custom-sized to fit my exact space?

Yes - every sail we fabricate is built to the exact point-to-point measurements of your site. There are no standard sizes we work from. Measurements are taken after attachment hardware is installed, ensuring the fabricated sail matches the actual geometry rather than an approximated dimension. This is the step that distinguishes a professionally specified installation from a DIY project.
03

Is it motorized?

No - this system is hand-operated by a pull cord at one end. The simplicity is intentional. No motors to burn out, no remotes to replace, no electronics to fail. The whole system is designed to last decades with the moving parts as simple as we can make them. If you want motorization over a pergola, take a look at our Retractable Pergolas (Corradi Palladia) instead.
04

What shapes are available?

Shade sails can be fabricated in virtually any shape: triangle (three-point), square or rectangle (four-point), hyperbolic / hypar twisted forms, and custom multi-point configurations (five-, six-, or more-point forms). Multiple sails in any mix of shapes can be combined into layered compositions to cover large or irregular footprints and create architectural depth that no single panel could achieve.
05

Are fire-rated fabrics available for schools, churches, and public facilities?

Yes. We specify fire-rated HDPE fabric options carrying NFPA 701 (National Fire Protection Association) and CSFM 1237.1 (California State Fire Marshal) certifications. Select options also carry ASTM E84-20 Class A / Class 1 ratings. FR fabrics are available in a range of colors and fabric weights - they're a standard specification option, not a special-order rarity. Full compliance documentation is available for permitting and project closeout.
06

How are they attached and tensioned?

The sail attaches to anchor points - posts, building walls, structural columns, or any rigid mounting structure - via a full marine-grade stainless steel hardware system: shackles, turnbuckles, D-ring thimble corners, and either a 7×19 aircraft-grade cable perimeter (sails with any side over 20 ft) or a heavy webbing perimeter (smaller sails). Turnbuckles at each corner allow progressive tensioning to the specified curve profile. They also allow re-tensioning over time as the fabric settles.
07

How long do shade sails last?

Commercial HDPE fabric carries manufacturer warranties of 10 to 15 years depending on the fabric tier selected. The marine-grade stainless steel hardware is designed to outlast multiple fabric generations. Actual service life depends on fabric selection, environmental conditions, installation quality, and maintenance - all of which we address through our specification and installation process.
08

Can you cover a large or irregular area?

Yes - cable perimeter construction handles large spans well, and multi-sail configurations allow coverage of virtually any footprint, irregular or otherwise. Overlapping triangles, layered rectangles, and mixed-shape compositions are one of the most effective tools for covering areas that no single sail could address. We design multi-sail compositions as part of the consultation process.
09

What does a project cost?

Shade sail fabric and fabrication starts at $10 per square foot for the sail itself, with pricing varying by fabric tier (heavy architectural and fire-rated fabrics are higher), shape complexity, hardware specification, and seam-minimization requirements. That figure does not include structural posts, attachment hardware installation, permitting, or the installation labor - those are priced after the site consultation. A commercial shade sail is a capital investment with a documented 10–15 year service life, not a seasonal purchase.
10

What does the CanopyWorx process look like?

Site consultation → shape and configuration design → attachment point planning and installation → precise point-to-point measurement → fabric and hardware specification → custom fabrication → professional installation and tensioning → project closeout with maintenance guidance and any compliance documentation required. CanopyWorx manages all of it. The outcome is a finished installation, not a kit that turned into your weekend project.
Ready for roman shades?

Let’s design the shade your pergola is waiting for.

Site visit is free. We'll measure, talk through your site, and come back with stamped drawings.
